Classic round slider carburetors that offer high performance at an economical price. Venturi sizes from 17mm to 30mm.
Nibbi PE series carburetor intake ports, divided into normal round ports and flange ports.
The flange is designed mainly for small displacements and is very easy to install without the need for adapters such as manifolds.
Suitable
The following is for reference. It is best to buy with the original carburetor intake diameter. Or consult our online customer service.
- PE17mm FL for 80cc~100cc engines
- PE19mm FL for 100cc~125cc engines
- PE22mm FL for 110cc~130cc engines
- PE24mm FL for 140cc~150cc engines
- PE26mm FL for 150cc~200cc engines
- PE28mm FL for 200cc~250cc engines
- PE24mm for 125cc~150cc engines
- PE26mm for 150cc~200cc engines
- PE28mm for 200cc~250cc engines
- PE30mm for 250cc~300cc engines

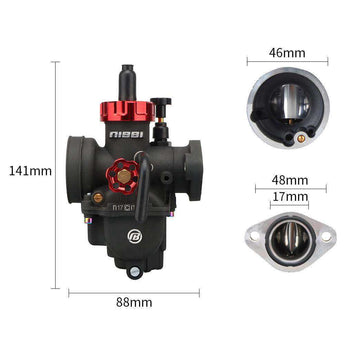

Specifications
Carb |
Color | Material | Main Jet | Pilot Jet | A | B | C |
D | E |
PE17mm FL | Black | Al alloy | 90 | 32 | 48mm | 17mm |
88mm |
46mm | 141mm |
PE19mm FL | Black | Al alloy | 98 | 32 | 48mm | 19mm |
88mm | 46mm | 141mm |
PE22mm FL | Black | Al alloy | 98 | 32 | 48mm | 22mm |
88mm | 46mm | 141mm |
PE24mm FL | Black | Al alloy | 112 | 40 | 48mm | 24mm |
88mm | 46mm | 141mm |
PE26mm FL | Black | Al alloy | 115 | 40 | 48mm | 26mm |
88mm |
49.5mm |
155mm |
PE28mm FL | Black | Al alloy | 112 | 40 | 48mm | 28mm |
88mm | 49.5mm | 155mm |
PE24mm |
Black | Al alloy | 105 | 40 | 31mm | 24mm |
82mm |
46mm |
138mm |
PE26mm | Black | Al alloy | 110 | 40 | 33mm | 26mm |
82mm |
48mm |
142mm |
PE28mm | Black | Al alloy | 115 | 40 | 35mm | 28mm |
82mm |
49mm |
150mm |
PE30mm | Black | Al alloy | 128 | 40 | 35mm | 30mm |
82mm |
49mm |
150mm |
Including
Comes with three main jets and a pilot jet.And 2 NIBBI stickers.
Carb |
Main Jet | Main Jet | Main Jet | Pilot Jet | Stickers | Instructions | Packaging Box |
PE17mm FL | 92 | 95 | 100 | 30 | 2 | 1 | 1 |
PE19mm FL | 92 | 95 | 100 | 30 | 2 | 1 | 1 |
PE22mm FL | 92 | 95 | 100 | 30 | 2 | 1 | 1 |
PE24mm FL | 108 | 110 | 115 | 35 | 2 | 1 | 1 |
PE26mm FL | 110 | 112 | 118 | 35 | 2 | 1 | 1 |
PE28mm FL | 108 | 110 | 115 | 35 | 2 | 1 | 1 |
PE24mm |
100 | 102 | 108 | 35 | 2 | 1 | 1 |
PE26mm | 105 | 108 | 112 | 35 | 2 | 1 | 1 |
PE28mm | 110 | 112 | 118 | 35 | 2 | 1 | 1 |
PE30mm | 122 | 125 | 130 | 35 | 2 | 1 | 1 |
