Need Help? Check Our FAQs
How to confirm the NIBBI fork & shock fit on my bike?
Nibbi fork & shock fits for the following models:
- Talaria Sting MX3
- Talaria R MX4
- Surron Light Bee
- Light Bee -X
- Segway X160
- Segway X260
- 79bike falcon m
- E-Ride Pro-SS
If your bike is not the model listed above and you still want to buy our products, we recommend that you carefully check the size of our products and the size of your bike, and then decide whether to buy them after careful comparison.

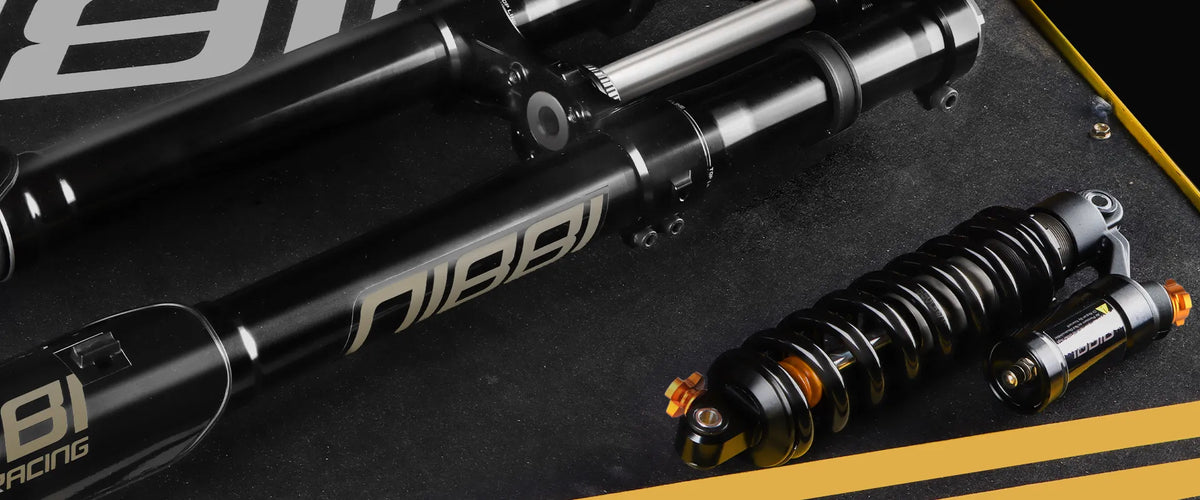

The size and weight of NIBBI suspension
The fork is inverted designed, 750mm in length, 38mm lower leg diameter, and about 5kg weight.
The shock absorber is 12-piston rod designed, 265mm in length, and about 1.3kg weight.
What is the fork & shock absorber made of?
7 series aluminum alloy
What type of the NIBBI suspension?
Spring Suspension
The spring rate for the fork
The spring rate of your Nibbi fork is 22-35 lbs/in.
The fork has progressive springs, which provide a softer initial feel (around 22 lbs/in) and become stiffer as they compress (up to 35 lbs/in).
This setup is designed to handle a variety of terrains and impacts, offering both comfort and stability depending on the riding conditions.
What grade of lubricating oil is used in Nibbi suspension?
Nibbi fork & shock absorber uses 10w oil originally.
If you want to change the oil, ensure you have the proper tools and oil recommended by the manufacturer before you start.
What is the travel and adjustment range of the suspension?
Fork travel 200mm and shock absorber travel 85mm.
The travel of this product cannot be adjusted.
How to adjust the suspension according to different terrains?
NIBBI fork has 20 levels of rebound and preload adjustment, and the shock absorber has 19 levels. we offer various options to adjust preload, compression, and rebound to help you optimize performance and comfort.
How to adjust the suspension for different riding style?
You can adjust following these step:
1. Turn the knob adjuster completely clockwise to maximum force.
2. Start to turn counterclockwise until you find the correct setup.
Can the suspension withstand the harsh operating environment?
During the research and development stage, the product underwent 1 million tests with no oil leakage, no abnormal wear, and the damping attenuation was within 30%.
Are there any installation instructions, user manual or video tutorials?
The product includes instructions and accessories necessary for installation.
If you have any questions, please contact us and we have professional engineers to answer your questions.
Is there anything I need to pay attention to in daily use?
Clean the fork surface after riding and check if the fork tube is damaged and if the rear spring is loose.
How often should the internal suspension oil be changed?
It depends on the usage. Generally, the internal oil needs to be replaced after about 100 hours of cumulative use.
What tools are needed for basic maintenance?
It may include socket wrench, open-end wrench, screwdriver, air pump, etc
What groups and scenarios is NIBBI Suspension designed for?
The product is designed for riders weighing around 75-85 kg and bikes weighing around 60-80kg for trail use.
What precautions should be taken during use?
Avoid falling off the bike and any other behavior that may cause deformation or scratching of the outer tube of the fork tube, which may affect driving safety.
Can the spring be replaced?
It can be replaced, but the size and length of the spring must be the same as the original. It is recommended that you replace it under the guidance of professionals to avoid product damage.
How long NIBBI suspension products are covered by the warranty?
If any quality problems occur within 90 days after receiving the goods, we provide free after-sales service. You can contact us by email and attach the purchase record.
Does the fork or shock have the possibility to change its travel?
The travel is not adjustable. The product has been designed to have the best travel during the R&D phase.
You can check the installation video on our website or YouTube channel. We highly recommend the product installation by professionals.
The travel is not adjustable. The product has been designed to have the best travel during the R&D phase.
Why choose the NIBBI suspension?
The product is made of 7 series aluminum alloy, it is strength and durability.
The unique closed damping system provides stable damping. Besides it is easy maintenance and not easy to oil leakage.
